This project was built and designed by Clinton from Specific Love Creations.

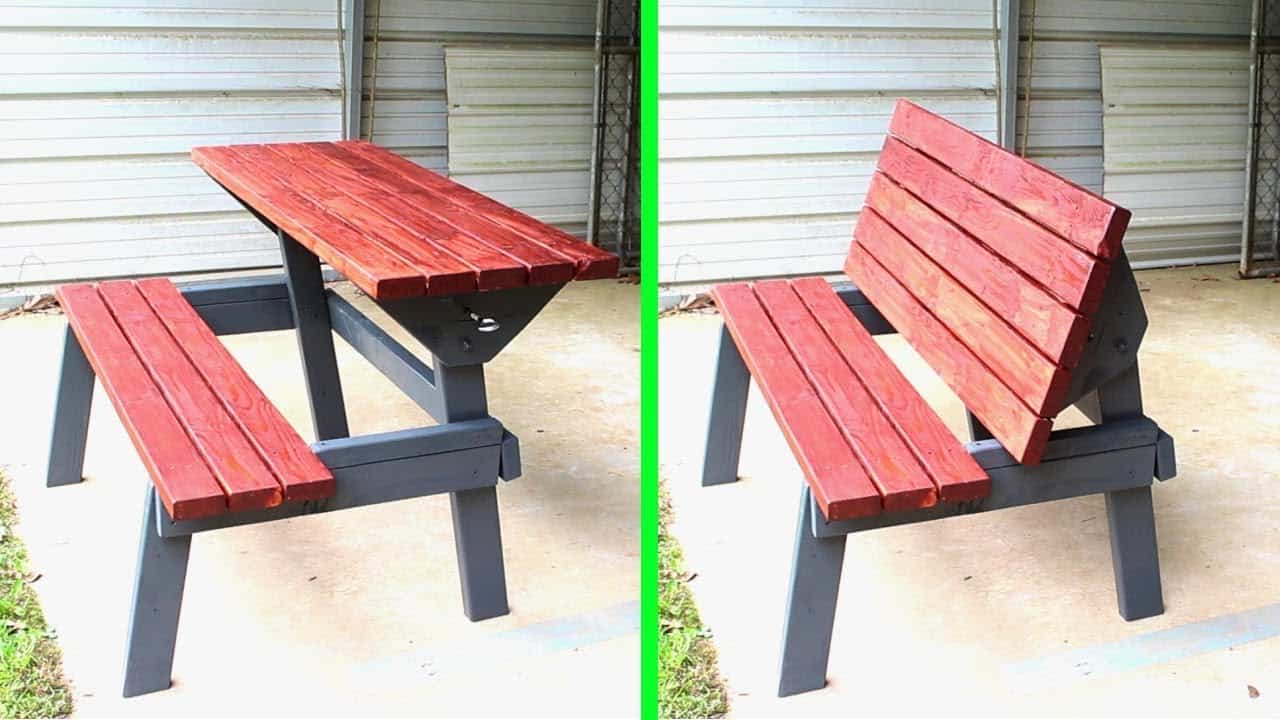

It’s a convertible outdoor bench that doubles as a compact picnic table—perfect for porches, patios, or any backyard with limited space.
Using common construction lumber and straightforward joinery, Clinton walks through a flexible design that pivots from one mode to the other using removable hardware. The final result is both practical and easy to replicate.
Watch the full video and subscribe to Clinton’s channel:
Why This Table-Bench Design Stands Out
Clinton’s design is based on a simple idea: create a piece that functions as both a bench and a table by pivoting the top board assembly. The build is compact but sturdy, making it great for small outdoor areas where versatility matters.
The tabletop swings into position using a removable rod and bolts, locking into place as a usable work or dining surface. When the top is pivoted forward, the same structure acts as a bench with a full backrest.
Lumber and Hardware Overview
The project uses dimensional lumber, primarily 2x4s and 2x6s. Clinton laminates a few wider boards from narrower stock for added strength in key parts of the build.
Hardware includes wood screws, a threaded metal rod for pivoting, locking nuts, and eye bolts. The fasteners are chosen for both strength and replaceability, especially in high-stress areas.
Boards are prepped by flattening, trimming, and gluing where necessary. Clinton avoids listing every cut list and measurement in the video, focusing instead on general process and adaptability.
Framing and Leg Layout
The key to the bench’s stability is in its angled leg design. The front legs are shorter and support the seat, while the taller rear legs provide back support when the unit is used in bench mode.
Each leg is attached using screws instead of glue so damaged parts can be swapped out later. Side supports tie the legs together, forming a strong base for the seat slats.
The leg angles and spacing are critical for balance and comfort. Clinton carefully squares and clamps the assemblies during assembly to maintain alignment.
Assembling the Pivoting Top
The tabletop consists of several slats joined with even spacing and fixed to a wider laminated board on each side. These wider boards act as pivot supports.
A threaded rod is inserted through the pivot supports and the frame, secured with nuts or eye bolts. The rod allows the tabletop to rotate smoothly between table and bench positions.
Clinton recommends drilling pivot holes just slightly larger than the rod to prevent binding due to wood expansion. Leaving a tiny gap at the ends also allows for seasonal movement without affecting performance.
Assembly Sequence and Pro Tips
Clinton builds the project in functional stages: first preparing laminated boards, then cutting leg pieces, assembling the seat, and finally attaching the pivoting top.
Tips from the build include:
- Using clamps and glue for wider pivot boards
- Pre-drilling holes to prevent splitting
- Angling screws on the ends of seat boards to avoid protrusion
- Using screws (not glue) for all structural joints to allow future repairs
These techniques ensure clean construction and easy long-term maintenance.
Finishing and Weather Protection
For finish, Clinton applies two contrasting stains—a warm tone for the tabletop and seat, and a gray tone for the frame. This two-tone style adds visual interest and highlights the functional parts of the design.
If the piece will be left outdoors, a clear protective topcoat is strongly recommended. Urethane or exterior finishes will help resist sun, moisture, and wear over time.
He also sands sharp edges and removes any factory mill marks before finishing to improve stain absorption and reduce splintering in daily use.
Things to Watch Out For
Because the top pivots and is not fully fixed, there may be slight movement when the unit is in table mode. Clinton notes that this is normal for convertible furniture and can be minimized with tight-fitting hardware.
Leaving a bit of clearance around the pivot rod prevents swelling or binding in humid conditions. For any loose joints, the screw-based assembly makes adjustments or part replacement easy.
Annual touch-ups with finish and hardware checks can greatly extend the life of this outdoor piece.
Custom Options and Variations
This project is easy to modify for different needs. You could:
- Build two matching units to form a full picnic table
- Adjust the slat spacing or width based on materials on hand
- Use pressure-treated or rot-resistant wood for a longer lifespan outdoors
- Add a locking brace or latch to keep the table top steady in use
It’s also a good candidate for experimenting with different finishes or paint colors, depending on the setting.
A Great Intro to Functional Outdoor Builds
This convertible bench-table project is approachable and highly functional. With no complex joinery, it’s an ideal introduction to outdoor woodworking and teaches essential skills like angled cuts, laminating boards, and working with pivot hardware.
Built from affordable lumber and standard tools, it’s a satisfying project with immediate use value—whether you want a compact picnic setup or a relaxing spot to sit and enjoy your yard.
