This project was built and designed by Zach from Bear Mountain Builds.
Flip tables are a popular way to save space in a small shop by stacking two tools on a single rotating platform, but many versions on the market are poorly balanced and built around plumbing pipe instead of proper hardware. Zach set out to fix that with a flip table engineered around a true center axis, integrated bearings, and folding wings that extend the work surface to match the tools mounted on it. The result is a station that can hold well over a hundred pounds of tools while still rotating with almost no effort.
Watch the full video and subscribe to Bear Mountain Builds:
Design and Engineering Approach
Rather than building a flip table around a single tool, Zach designed this one with balance and load transfer in mind. The weight of the tools stays aligned along the center axis, and four bearings support that axis so the rotation feels far lighter than the actual weight being moved.
The frame is built mostly from standard construction-grade dimensional lumber, chosen because it is inexpensive but still plenty strong for this kind of load. A larger piece of lumber is added in key spots to reinforce the area supporting the flip table itself.
Zach also planes down his lumber slightly to clean up the edges for a better looking final product, though he notes this step is optional. For anyone following along without doing that extra milling, the joinery and layout still work fine with standard lumber dimensions.
Building the Base and Flip Table Frames
Construction starts with the legs, which are made from two pieces joined with a lap joint at the bottom. This lets the stretchers seat into a notch, creating strong load transfer straight down into the ground rather than relying on screws alone to carry the weight.
Each side of the base frame uses a single stretcher near the bottom, leaving the upper portion open so the flip table has room to rotate. Cross pieces are added to tie the two side frames together and to support a plywood platform that keeps the whole base rock solid.
The flip table itself uses a similar framing approach, but with extra interior cross pieces added specifically to give the mounting bolts for each tool a solid place to anchor. Since most tools have mounting points set back from their edges, these interior supports are positioned so lag screws can bite into solid wood instead of open air.
Before locking anything in place, Zach checks the frame for square by comparing diagonal measurements and adjusting with a ratchet strap until both diagonals match. This simple trick makes it much easier to keep a large frame true without any specialty tools.
Bearings and Rotation
The bearings are the heart of what makes this flip table rotate so smoothly, but they only work well if they are installed perfectly perpendicular to the shaft. Zach built a simple drilling guide to locate the exact center of each mounting point, ensuring every bearing lines up correctly on both the tabletop and the supporting frame.
On the frame side, a larger piece of lumber is used to hold the bearings since it needs to handle more stress, and bolts are used here instead of lag screws for added strength. Spacers are used to set the bearing supports at the exact height needed so the flip table sits flush and level once installed.
Once both sets of bearings are in place, a heavy-duty bolt is used as the rotating shaft, secured with set screws so it can’t work its way out over time. Testing the rotation at this stage shows just how smooth a properly aligned bearing system can feel, even before any tools are attached.
Latches, Wings, and Side Platforms
To keep the table locked in place on either side of its rotation, toggle latches are mounted onto small wood blocks that bridge the gap left by the bearing hardware. Getting the table level before attaching these latches is important, since any tilt will translate directly into a poor lock later on.
Folding wings are added next to extend the usable surface on both ends of the table. These fold down for storage but flip up to give extra support when a tool is in use, which is especially helpful for feeding long material through a planer or miter saw.
Side platforms are also installed to cover the frame and bearings while extending the work surface closer to the tools themselves. Zach notes that adding wings to a workbench or tool station is almost always worth it, since they add a lot of usable surface without taking up any extra floor space when folded away.
Mounting the Tools

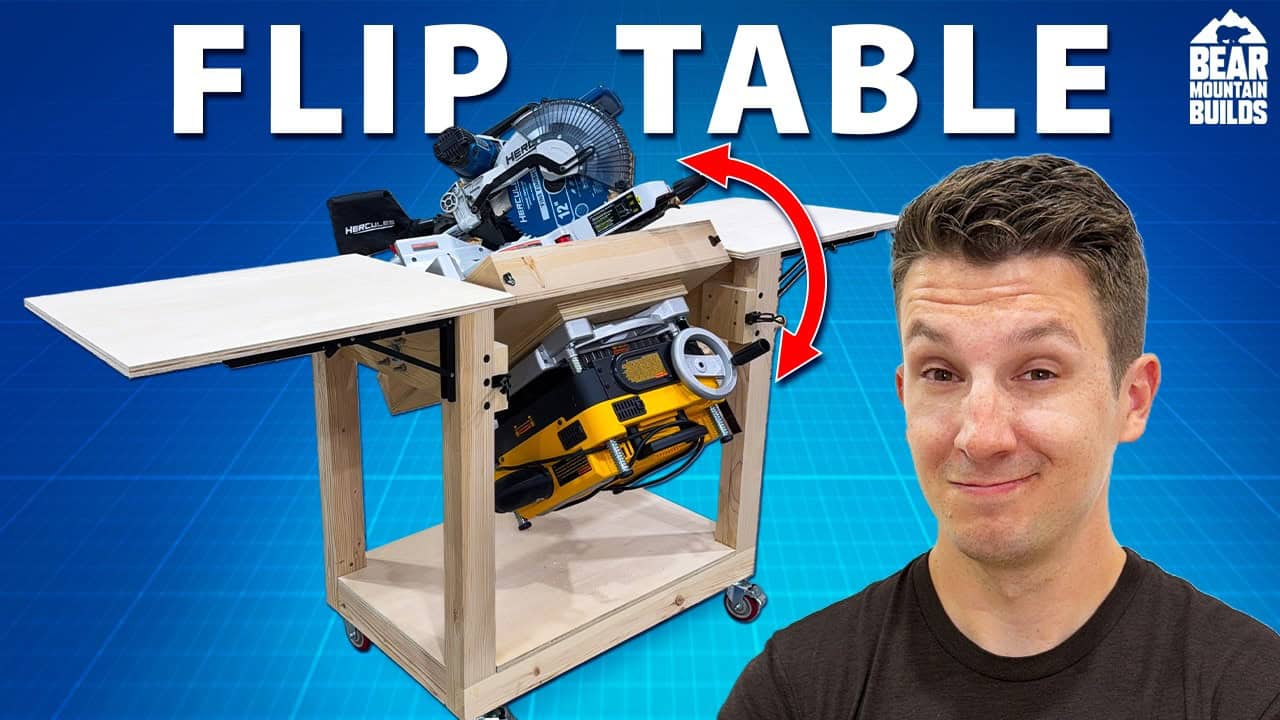

With the frame and hardware complete, the final step is mounting the actual tools. Zach installs a miter saw on one side and a planer on the other, positioning each so its center of gravity lines up with the rotating axis. This balance point is usually close to where the tool’s carrying handles are located, which makes sense since that’s the same spot a person would naturally support the weight from.
Because the planer sits lower than the miter saw, plywood spacers are stacked and glued together to raise it up until both tools share the same working height. This keeps the surface flush across the wings no matter which tool is flipped up.
Large lag screws and washers are used to anchor both tools securely, since a rotating table carrying a heavy planer needs hardware that won’t work loose over time. Once everything is bolted down, the completed table rotates with surprising ease, even with well over a hundred pounds of tools mounted on it.
Mobility and Final Thoughts
Caster wheels round out the build, making it easy to roll the whole station around the shop or push it against a wall when it’s not needed. With the wings folded down, the footprint shrinks considerably, which is one of the main advantages of a flip table design in the first place.
This build shows how a little extra engineering—proper balance, aligned bearings, and secure mounting—can turn a flip table from a wobbly compromise into a genuinely useful shop fixture. Anyone dealing with limited floor space could adapt this approach to their own pair of benchtop tools by adjusting the frame dimensions and spacer heights to match.
See This’s plans here: https://www.bearmountainbuilds.com/products/flip-table
Matt’s Take
These are my personal thoughts and tips based on my own experience in the shop. This section is not written, reviewed, or endorsed by the original creator of this project.
Flip tables are one of those projects that look simple until you actually think through the physics of spinning a hundred-plus pounds of tools on an axis. The bearing alignment piece Zach focused on is really the make-or-break detail here. Even a slight off-center hole can introduce binding that makes the whole table feel heavier than it is, so building a drilling jig like that is a smart move for anyone attempting this at home rather than eyeballing it.
Using dimensional construction lumber for a build like this is worth calling out too. It gets a bad reputation in furniture circles, but for shop fixtures that need to carry serious load, it’s often the better choice over plywood or hardwood simply because of how much material you get per dollar. Just make sure to sight down each board before you buy it, since crowning or twisting in construction lumber can throw off an otherwise square frame.
The diagonal measurement trick for squaring a frame is a great habit to build regardless of the project. A cheap ratchet strap can do the same job as a set of pipe clamps for pulling a frame into square, and it’s a lot more affordable than most specialty squaring tools.
One safety note worth keeping in mind with any rotating tool station like this: always double check that the latches are fully engaged before feeding material through, since a shift mid-cut with a miter saw or planer running could be dangerous. It’s a small habit that takes two seconds but protects both you and the tool.
