Large wood slabs are often too wide for a standard planer, and sending every project out to a commercial shop gets expensive fast.
A router sled solves that. It lets a router move across a controlled reference plane while a surfacing bit knocks down the high spots on a slab. Some woodworkers build a simple plywood sled for occasional use. Others choose a purpose-built gantry system for better repeatability and faster setup.
This guide covers what actually matters when you're comparing options.
What Is a Router Sled?
A router sled is a frame or rail system that holds a router above a piece of wood. The router travels across the slab while a wide surfacing bit removes material, so instead of feeding wood through a planer, you're feeding the router over the wood.
That makes it useful for:
- Live-edge slabs
- Dining tables
- Workbench tops
- Epoxy river tables
- Large glue-ups
- Cutting boards
- Panels too wide for a planer
The goal is a flat reference surface. Once the first face is flat, you flip the slab and flatten the second face parallel to the first.
See a router gantry system flatten a slab from start to finish in this video:
What Makes the Best Router Sled for Slab Flattening?
A simple plywood jig is enough for a small project. Regular slab work usually justifies a stronger aluminum system.
The factors that matter most: rail rigidity, working capacity, movement, adjustment, and router compatibility.
1. Rail Rigidity

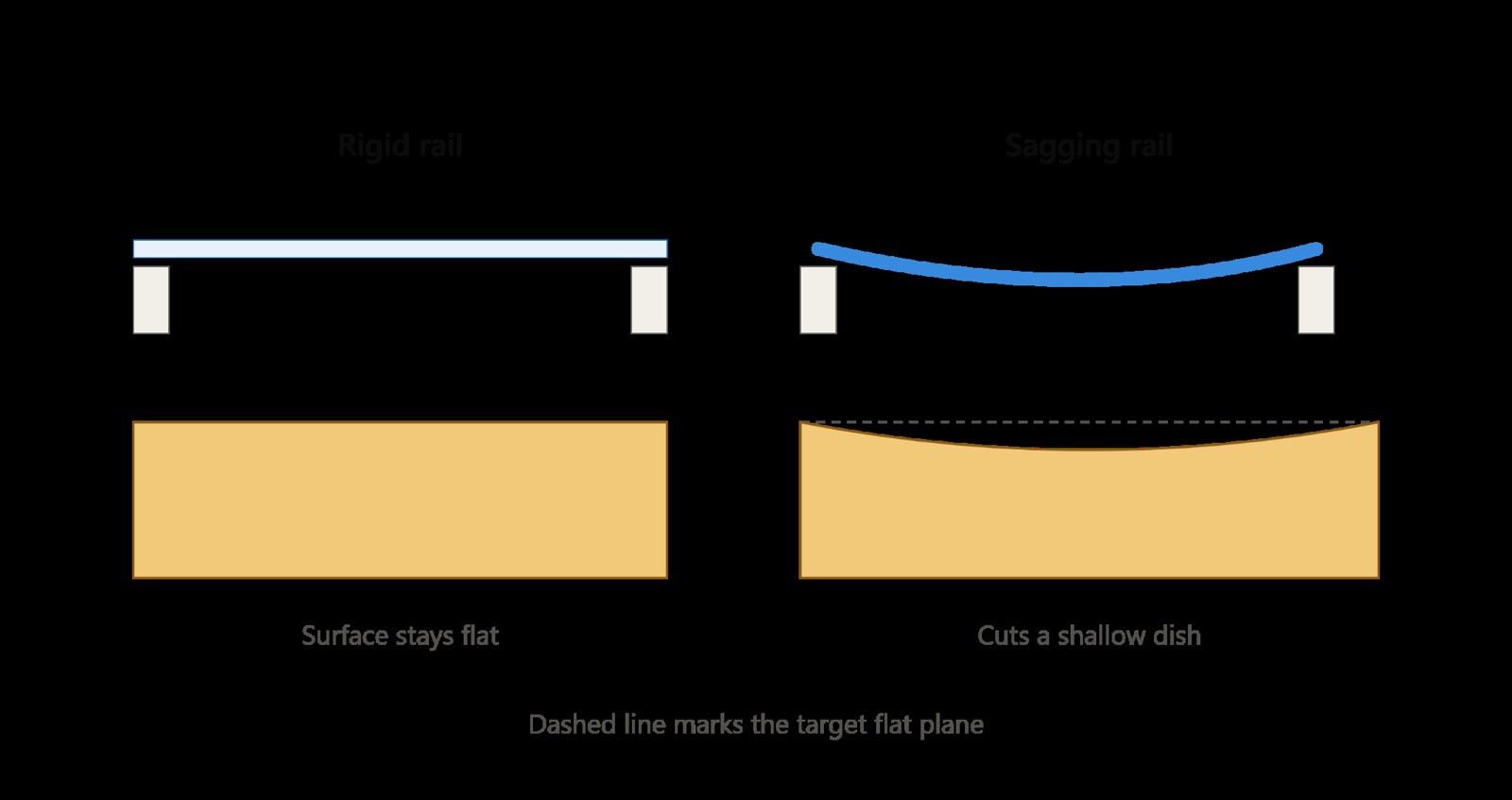

The router has to stay on the same reference plane as it moves across the slab. If the rails bend or sag, the cutter removes more material in the middle of the workpiece, which leaves a shallow dish instead of a flat surface.
This matters more as the working width grows. A short sled made from straight plywood can hold up fine over a small span. Longer systems benefit from stronger materials, like aluminum extrusion or steel — see how steel angle rails handle this in a shared-baseplate sled build.
When comparing sleds, look at:
- Cross-rail stiffness
- Unsupported span
- Carriage construction
- Connection points
- Router weight
- Side-to-side movement
A rigid system also cuts down on setup corrections between projects.
2. Maximum Slab Size
Measure the largest slab you expect to flatten before you buy. Don't size the sled to your current project — a system that barely fits today's tabletop will feel too small the next time a slab runs a few inches wider.
Check both width and length. The router needs enough travel to reach the whole surface, plus extra room for clamps, stops, live edges, and safe movement. A 36-inch-wide tabletop, for example, calls for more than exactly 36 inches of usable travel. Long slabs need rail length to match — some systems use fixed-length rails, others extend.
3. Router Gantry Systems vs. Basic Sleds
"Router sled" covers a range of designs. At the simple end, two side rails and a wooden carriage will do the job, and it's cheap to build. At the other end, rigid rails and a gantry-style carriage give you more control.
A purpose-built router gantry system is built around repeatability — you're not rebuilding or re-tuning a jig for every job, since the gantry gives the router a dedicated structure to move on. That matters most for woodworkers flattening slabs on a regular basis rather than once or twice a year.
4. Smooth Router Movement
Jerky movement makes passes inconsistent and can affect surface quality. Depending on the design, sleds move the router with sliding carriages, bearings, rollers, linear rails, wheels, or guided cross-feed systems.
Smooth movement helps you hold a steady feed rate and cuts down on fatigue. A dining table can take dozens of passes, so small gains in movement quality add up.
5. Height Adjustment
Slabs come in different thicknesses, and a sled that's slow to adjust vertically makes setup a chore. Some systems require you to reposition the side rails by hand; others give you preset mounting positions or an adjustable gantry height.
You want the router close enough to the slab that the cutter reaches the highest point without hanging too far below the router base. Good adjustment speeds up switching between thin panels, cutting boards, thick slabs, workbench tops, and epoxy pours.
6. Router Compatibility
The sled is only half the setup — you still need a router that can handle the load. Slab-flattening bits put more strain on a motor than typical general-purpose bits.
A smaller router will still flatten wood, but expect a smaller cutter, shallower passes, slower material removal, and more total passes. For regular slab work, most woodworkers reach for a larger router with a 1/2-inch collet. Check the recommended cutter diameter and speed limits for whatever router you're running.
Choosing the Right Slab Flattening Bit
A good sled paired with the wrong cutter still gives poor results. Slab flattening calls for a wide surfacing or spoilboard bit, which removes a broad strip of material with each pass. Common options: straight surfacing cutters, carbide insert bits, replaceable insert cutters, and spoilboard cutters.
Carbide insert bits are popular for repeat work because you can rotate or replace individual cutting edges instead of tossing the whole bit. A wider bit clears material faster but loads the motor harder, so bigger isn't automatically better — match the bit to what your router can actually drive.
Commercial Router Sled vs. DIY Router Sled
Building a router sled is a common shop project, and a DIY build makes sense if you only flatten slabs now and then. Typical materials: plywood, MDF, steel angle, aluminum extrusion, T-track. The main draw is cost, and you can size it exactly to your bench and typical slab.
| Factor | DIY Router Sled | Commercial System |
|---|---|---|
| Initial cost | Usually lower | Usually higher |
| Setup time | More | Less |
| Custom sizing | Excellent | Depends on system |
| Rigidity | Depends on construction | More predictable |
| Repeatability | Varies | Usually better |
| Modifications | Easy | Depends on design |
| Best for | Occasional projects | Frequent slab work |
A DIY sled fits woodworkers who like building jigs and don't mind the setup time. A commercial sled or gantry system fits woodworkers who'd rather spend that time flattening.
How to Set Up a Router Sled Correctly
Even a good sled won't produce a flat slab if the setup's off.
Start with a stable base. The side rails need to form a consistent reference plane — if one rail sits higher than the other, the router follows that error across the whole cut.
Then stabilize the slab. A twisted or uneven slab rocks on the bench, so shim it until it sits firm, and secure it without forcing it out of its natural position.
- Place the slab on a stable work surface.
- Check for rocking.
- Shim unsupported areas.
- Secure the slab.
- Check the router sled rails.
- Locate the highest point.
- Set a shallow cutting depth.
- Make overlapping passes.
- Lower the cutter gradually.
- Continue until the entire surface is flat.
Skip the aggressive first pass. Shallow cuts are easier on the router and tend to leave a cleaner surface.
How to Reduce Router Marks
Light ridges or scallop marks after flattening are normal — they come from the cutter path, small amounts of router movement, or slight overlap differences between passes.
Cut down on them by keeping the rails rigid, running a sharp cutter, taking shallow passes, holding a steady feed rate, overlapping each cut, keeping the router square to the work, and avoiding excessive cutter extension.
You'll still want to sand afterward. Flattening builds the reference surface; sanding gets it ready for finishing.
Dust Collection Matters
Slab flattening throws a lot of waste. A planer directs chips through an enclosed cutter head, but a router surfacing bit works in the open, so chips and dust spread fast.
Good dust collection helps with visibility, cleanup, air quality, and cutter access. If slab flattening is a regular part of your work, dust collection deserves the same attention as the sled itself — treat it as part of the setup, not an afterthought.
When a Router Gantry System Makes Sense
A basic DIY sled handles one or two projects fine. A structured gantry system earns its keep once slab work becomes part of your regular routine — flattening large slabs often, projects that vary in size, wanting faster setup, needing predictable router movement, epoxy tables, large glue-ups, or workpieces a planer simply can't take.
Systems like the TrueTrac router gantry range come in multiple working sizes, which gives you more flexibility than building every project around one fixed homemade jig.
Common Router Sled Mistakes
Most poor results trace back to setup rather than the sled itself.
Cutting too deep on the first pass is a common one — it stresses the router and can cause chatter. Failing to secure the slab is another; if the workpiece shifts mid-cut, the surface won't come out consistent.
Other problems to watch for: misaligned rails, a dull surfacing bit, too much rail span, incorrect router speed, insufficient overlap, loose carriage movement, and poor dust removal. Checking these before you cut saves a lot of sanding later.
How to Choose the Right Router Sled for Your Shop
The best router sled for slab flattening depends on your slab size, router, workload, and shop. A carefully built DIY sled covers occasional projects. For larger slabs and repeated use, a rigid commercial system makes setup easier and movement more consistent.
Pay attention to rail stiffness, usable cutting area, router compatibility, adjustment, and dust control. Those five things affect the finished result more than picking the biggest or most expensive system on the shelf.
Set up right, a router sled turns a standard router into a real slab-flattening tool and opens up projects that would otherwise need a wide industrial planer or a CNC machine.
