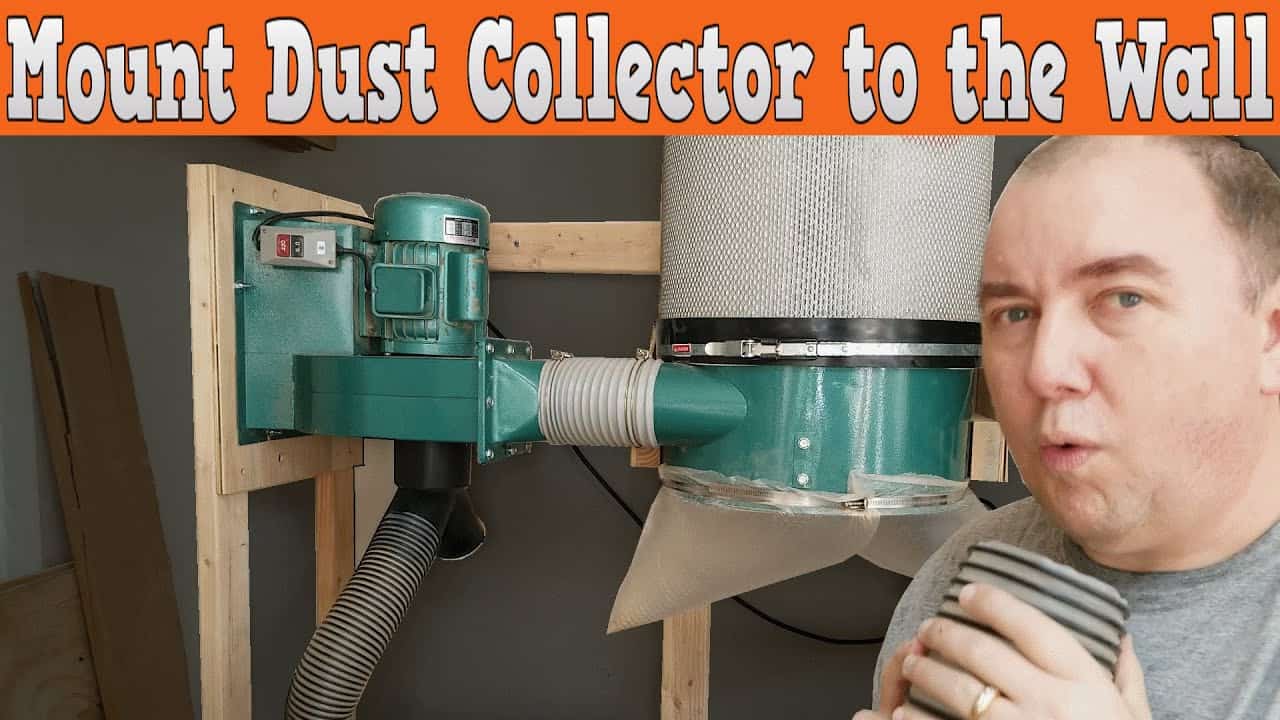

This project was built and designed by Michael from Maker At Play. It’s a smart workshop upgrade that gets your dust collector off the floor and onto the wall—freeing up space while improving system efficiency.
Michael transforms a standard dust collector into a compact two-stage setup, making it more effective and easier to maintain. The process involves some careful planning, a few structural upgrades, and thoughtful placement in the shop.
Watch the full video and subscribe to Michael’s channel:
Why Wall-Mounting Makes Sense
Dust collection is a vital part of any woodworking shop, but standard units can be bulky and awkward. By mounting the system on the wall, Michael reclaims floor space and creates a cleaner, more accessible work environment.
In addition to space-saving benefits, the modified layout turns the system into a two-stage collector. That means better debris separation, less filter clogging, and improved air quality overall.
Disassembling the Collector
The first step is to disassemble the dust collector so its major components—the blower and filter—can be relocated. Screws are removed from the housing, and the heavier parts, especially the blower, are set aside carefully.
Laying out the components on the floor helps with planning. This approach lets you visualize how they’ll fit on the wall before making any permanent moves.
Planning the New Layout
Michael chooses a corner of the shop for the installation, using both intersecting walls to separate the motor and filter. This orientation improves airflow and keeps each element accessible for maintenance.
By spreading the system across two walls, he also keeps the footprint compact and avoids interference with other tools or work surfaces. It’s a practical setup for small and mid-sized shops alike.
Building the Frame
A sturdy frame is constructed from 2x4s and 2x6s to support both the blower and the filter. The frame is built to be rigid and secure, with pocket screws used for clean joinery and strong connections.
The filter section includes a small base platform, which is reinforced with metal brackets. These brackets add stability while giving the mount a clean, finished look.
Mounting the Filter
The filter is mounted first so the overall height can be adjusted as needed. Carriage bolts secure it to the frame, keeping everything tight and level.
Because filter height can vary depending on brand or style, Michael checks his spacing throughout the process. Any needed changes are made before attaching the other components.
Constructing the Blower Mount
The blower is mounted on a separate frame made of 2x4s and plywood. The plywood offers a flat mounting surface, while the 2x4s anchor the unit securely into the wall studs.
Measurements are taken to keep the blower centered, and holes are drilled through the plywood into the framing. This ensures the motor is firmly supported and can handle the vibration during use.
Securing the Blower
Lag bolts are driven through the framing and into the wall studs to hold the blower in place. An additional 2×4 is added beneath the unit for extra support, minimizing stress on the hardware over time.
Michael takes care to keep the blower level and square to ensure smooth airflow through the system. Once it’s anchored, he gives the entire mount a quick stability test before moving on.
Connecting the System
With both the blower and filter mounted, hoses are attached to complete the circuit. This step is straightforward but important for performance—tight seals and proper hose lengths help maintain suction.
Michael runs a quick test to check for leaks and ensure that the dust is moving through the system properly. A visible improvement in sawdust capture confirms that the system is working as intended.
Benefits of the Upgrade
This wall-mounted setup comes with several major advantages:
- Saves Floor Space: Clears valuable shop area for other tools or movement.
- Boosts Efficiency: A two-stage layout captures more dust before it hits the filter.
- Improves Organization: Keeps the system tucked out of the way but easy to access.
- Simplifies Maintenance: Mounting makes it easier to clean or replace parts.
A Clean, Functional Shop Upgrade
Michael’s dust collector upgrade is a practical project with immediate results. It’s well within reach for intermediate woodworkers and offers a big return in shop functionality.
With careful measurements, solid framing, and a bit of planning, your dust system can work harder without taking up more space. It’s a great improvement that pays off every time you turn on a tool.
