Drew Fisher from Fisher’s Shop shared the woodworking tip featured in this video.
Drew addresses a common shop problem by designing custom dust collection shrouds for various woodworking tools. Using 3D printing technology, he creates targeted solutions that position vacuum inlets closer to dust sources for dramatically improved collection efficiency.
Watch the full video and subscribe to Fisher’s Shop:
Miter Saw Shroud Redesign
Drew starts with his miter saw dust collection upgrade. His original cardboard shroud worked well but proved fragile, breaking repeatedly from blade kickback and handling damage.
The 3D printed version incorporates several improvements over the original design. He reduces the internal volume by curving the back and adding rounded corners to increase suction strength. Rounded edges at the hose inlet improve airflow, while positioning tabs ensure proper placement behind the fence.
The new shroud demonstrates excellent dust capture during cross cuts. When damaged, Drew can simply print a replacement rather than rebuilding from scratch each time.
Bandsaw Collection Enhancement
The bandsaw presents a particularly challenging dust collection problem. The factory port sits far below the cutting area, allowing dust to scatter across surfaces and accumulate on cabinet features.
Drew’s solution involves a two-part magnetic shroud system. The front and back sections slide together and lock using embedded magnets at the corners. Additional magnets along the top help position the assembly against the saw table.
A separate wedge component secures the entire shroud assembly firmly in place. The design captures dust immediately at the source near the throat plate, preventing the widespread mess typical of stock collection systems.

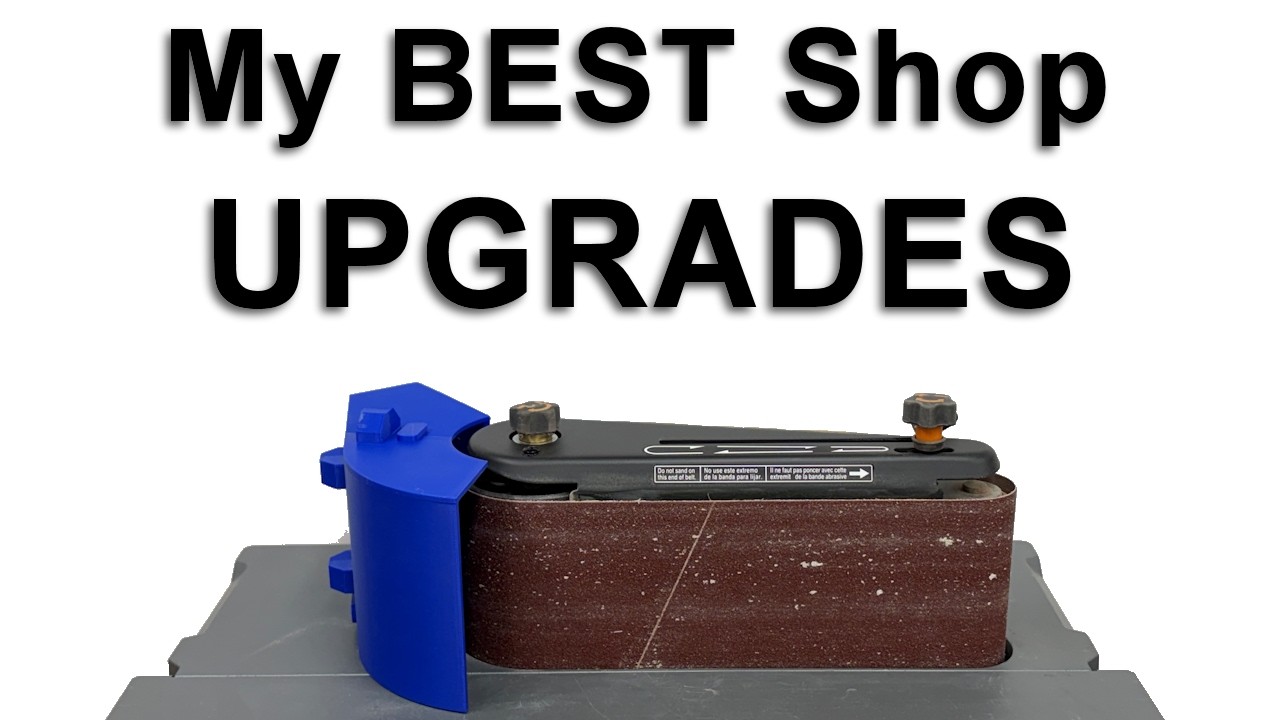

Oscillating Sander Upgrade
The oscillating belt sander suffers from inadequate dust pickup despite having factory collection. Dust accumulates on both sides of the belt since the vacuum sits behind and below the actual sanding surface.
Drew’s compact shroud relocates suction directly to the dust source. The design mounts using the existing stop block attachment system, maintaining tool functionality while dramatically improving collection.
An optional extension piece allows the shroud to wrap around to the front of the belt for complete coverage. The system works equally well with both the belt and spindle configurations.
Universal Drill Press Solution
The drill press shroud takes a different approach entirely. Rather than creating a tool-specific design, Drew develops a universal clamping system that positions vacuum suction wherever needed.
The simple design features a hose connection point with a flat base plate. Standard squeeze clamps secure it to any surface, creating a third hand for dust collection during drilling operations.
This versatility extends the shroud’s usefulness beyond the drill press to other handheld tools like jigsaws and trim routers, making it a valuable addition for various shop operations.
Design and Manufacturing Process
Drew’s approach combines traditional prototyping with modern manufacturing. He creates cardboard mockups to establish basic dimensions and visualize concepts before moving to 3D modeling.
The design process involves considerable trial and error, particularly for complex assemblies like the bandsaw shroud. Drew uses Fusion 360 for modeling and Bamboo Studio for slicing and print preparation.
Each design incorporates specific features for its intended application while considering practical manufacturing constraints and material properties of printed plastic.
Performance Results
The custom shrouds deliver substantial improvements in dust collection effectiveness across all applications. Drew demonstrates the enhanced performance through visual tests and actual cutting operations.
The miter saw shroud eliminates dust scatter during cross cuts. The bandsaw system captures debris immediately at the source, keeping surfaces clean. The sander upgrade transforms a dust-producing operation into an effectively contained process.
These targeted solutions address the fundamental problem of poorly positioned factory dust ports. By relocating suction closer to dust generation points, each design achieves dramatically better collection efficiency than stock systems. The 3D printing approach allows woodworkers to create custom solutions for their specific tools and shop layouts.
Watch the full video and subscribe to Fisher’s Shop:
Matt’s Take
These are my personal thoughts and tips based on my own experience in the shop. This section is not written, reviewed, or endorsed by the original creator of this project.
Drew’s approach here really highlights how much difference placement makes in dust collection. I’ve always found that factory dust ports seem like afterthoughts — they’re often positioned for manufacturing convenience rather than actual performance. Getting that suction right at the source, like he’s doing with these shrouds, can turn a mediocre system into something that actually works.
The 3D printing angle is pretty smart for this kind of project. Once you dial in a design, you can crank out replacements whenever they get damaged or worn out. Traditional materials like plywood or MDF work fine too, but there’s something appealing about being able to iterate quickly and print exact duplicates. Plus, those embedded magnets for the bandsaw shroud are the kind of detail that’s easier to plan for in a 3D model than retrofit later.
One thing worth mentioning — when you’re positioning any kind of shroud or collection hood, pay attention to chip ejection patterns. Different cuts throw debris in different directions, and you want to work with that flow rather than fight it. Also, make sure whatever you build doesn’t interfere with blade guards or other safety features. The improved dust collection isn’t worth creating new hazards in the process.
