This project is by David Picciuto from Make Something. This DIY woodworking project is not only budget-friendly but also allows you to add a personal touch to your home decor.

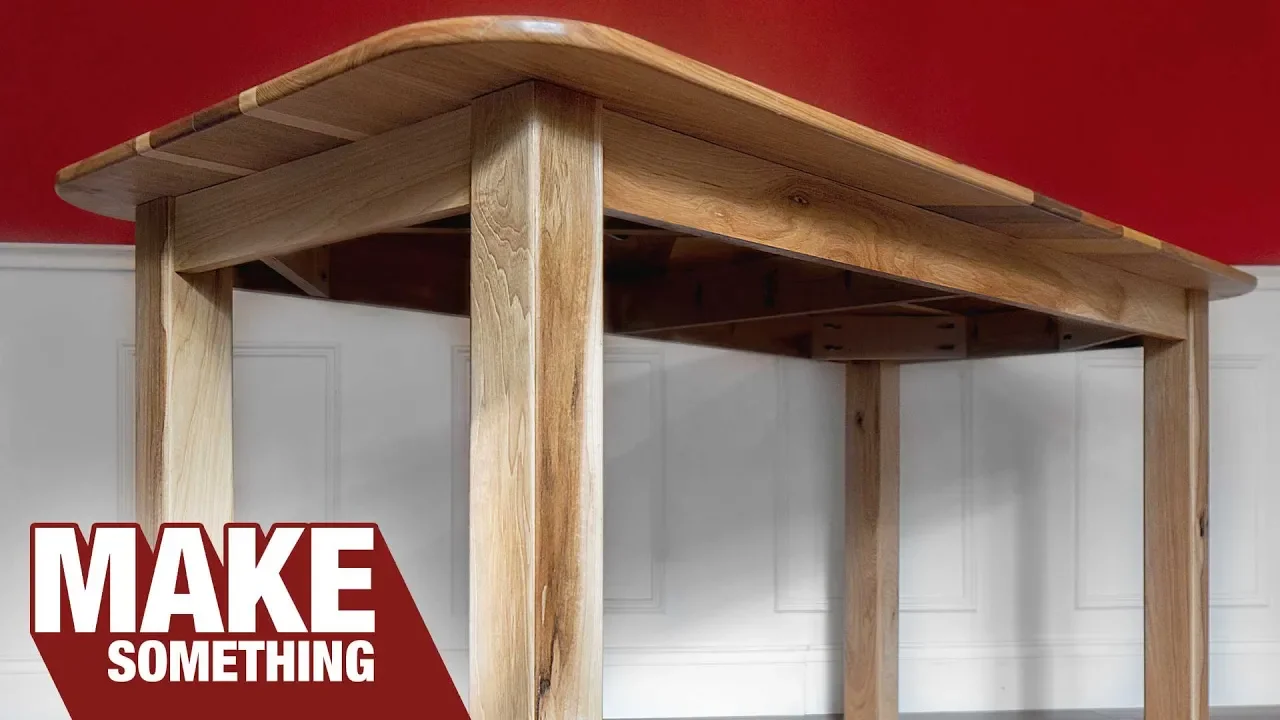

In this tutorial, we will walk through the steps to create a sturdy dining table with beefy legs using pocket hole joinery.
Step 1: Gather Your Materials
Before starting your project, ensure you have all the necessary materials and tools. For this project, you will need:
- 3/4″ wood for the table legs and aprons
- Pocket hole jig (Kreg K5 or similar)
- Wood glue
- Pin nailer
- Router or router table
- Miter saw
- Table saw
- Air compressor
- Sandpaper
- Wipe-on polyurethane for finishing
Step 2: Cut the Boards to Width
Start by cutting all your boards to the same width using a table saw. This uniformity will make assembly easier.
After ripping the boards, you will need to cross-cut them to the desired lengths for the legs and aprons.
Step 3: Create the Legs
For the legs, you will need to create a wood tube structure using four boards. First, cut the boards longer than the final desired length, as you’ll trim them later.
Next, cut 45-degree miters on the edges of each board to form the corners of the tube. This will give your legs a thick and robust appearance.
Step 4: Assemble the Legs
Once all the pieces are cut and mitered, use wood glue and pin nails to assemble the leg structure. Apply glue to the miters and hold them together with pin nails until the glue sets.
Let the leg assembly dry completely before moving on to the next step.
Step 5: Round Over the Corners
After the legs are dry, use a router or a hand plane to round over the corners. This provides a smoother finish and helps prevent chipping when moving the table.
Step 6: Cut the Apron Pieces
Now it’s time to cut the apron pieces. You will need two long and two short pieces, which will connect the legs and provide stability for the table.
Step 7: Drill Pocket Holes
Using the pocket hole jig, drill pocket holes into the apron pieces. Ensure that you position the holes on the side that will not be visible once the table is assembled.
Step 8: Assemble the Table Frame
With the pocket holes drilled, it’s time to assemble the table frame. Attach the apron pieces to the legs using pocket hole screws and glue. Use spacers to ensure the apron sits correctly back from the legs.
Make sure everything is flush at the top, and tighten the screws securely.
Step 9: Add Corner Supports
To enhance stability, cut additional corner supports with 45-degree miters. These will provide extra strength to the table structure.
Drill pocket holes for these supports and attach them securely in each corner.
Step 10: Finish the Table Base
Once the frame is complete, apply a few coats of wipe-on polyurethane for a durable finish. This will protect the wood and enhance its appearance.
Step 11: Attach the Tabletop
For attaching the tabletop, you can use pocket hole joinery or figure-eight tabletop connectors for better expansion and contraction handling. Ensure that your top is securely fixed to the base.
Step 12: Final Thoughts
Woodworking is all about experimentation and learning. If any issues arise during your project, remember that you can always fix them. Enjoy the process and take pride in your custom piece!
